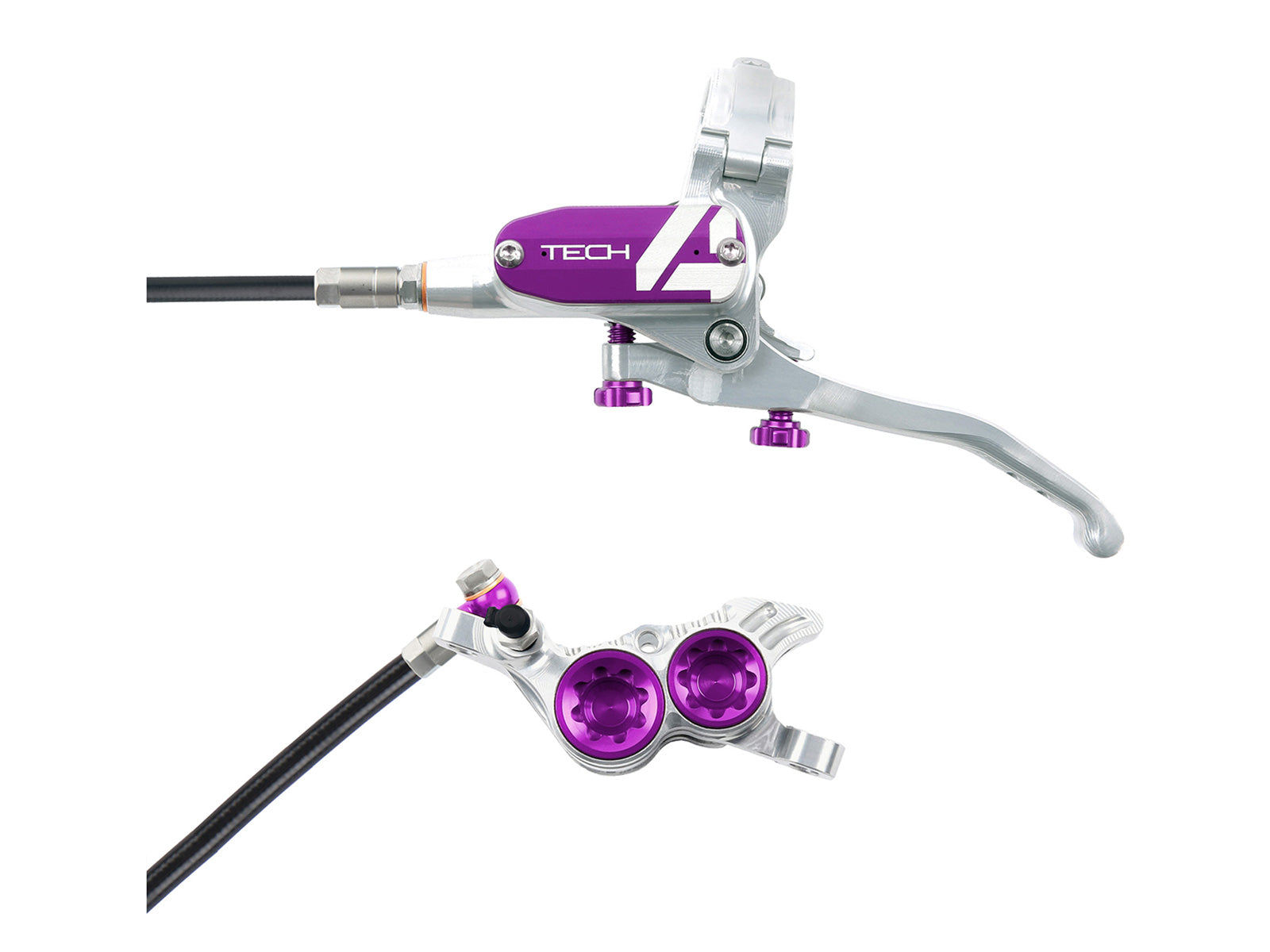

Hope Hope Tech 4 V4 Brake
The Tech 4 V4 was designed for aggressive enduro and downhill riding and builds on Hope’s 25+ years of experience designing and manufacturing hydraulic brake systems.
The Tech 4 uses all new internal sealing for reduced friction and the pivot spins on roller bearings, allowing the spring rate to be reduced. The lower spring rate in turn gives a lighter lever action, reducing rider fatigue and keeping their legendary feel and modulation.
The updated V4 caliper utilizes hybrid style Stainless steel pistons with a phenolic insert allowing for smoother movement and less maintenance, while still able to manage high temperatures without heat transfer during extreme use.
In the box
- Tech 4 V4 Disc Brake (lever and caliper system is pre-bled)
- Racing compound pads installed. One pair of Organic Pads included.
- Extra olive, barb and sealing washer
- Mounting bolts and washers
Features
- Increased stopping power over the Tech 4 E4
- Increased power versus Tech 3 (30% pressure increase)
- Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking
- Hinged clamp design to reduce weight and reservoir area increased to lower overall stack height.
- Tool free bite point and reach adjustments
- Hybrid style pistons consisting of a stainless-steel piston shell, which allow smoother movement and require less maintenance, and a phenolic insert to manage heat transfer during extreme use.
- Rigid CNC'd one piece caliper
- Tech 4 brakes are supplied with new racing compound pads designed to offer impressive performance straight out of the box with little bedding in required. They are also more resistant to fade than standard organic pads.
- Shifter integration has been improved and now offers 30° of angle adjustment as well as neater packaging and compatibility with the latest shifters. Lateral adjustment on both sides of the master cylinder is also possible to give a wide range of lever position options.
Tech Specs
| Fluid: | DOT 5.1 |
| Pistons: | Four |
| Lever Reach Adjust: | Yes |
| Pad Contact Adjust: | Yes |
| Reversible Lever Body: | No |
| Lever Material: | Aluminum |
| Intended Use: | AM / Enduro / DH |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
